Description

The world’s most advanced heat press just got smarter. Register your Air Fusion and access the Hotronix Online Portal to manage users, generate usage reports, and troubleshoot issues. Plus, a brand-new controller with a larger, higher resolution screen makes it easier than ever to modify settings and save recipes.

  • Air power reduces operator fatigue in high-volume shops
  • Hands-free auto-swing creates a heat-free workspace

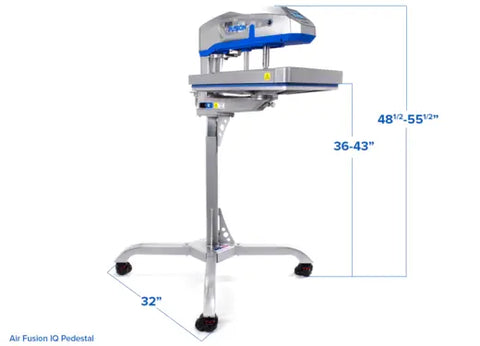

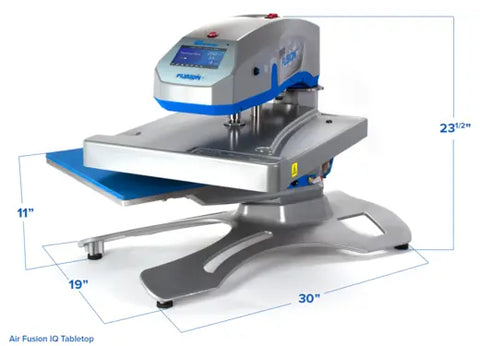

  • Available in Pedestal and Table Top models
  • Powered by an air compressor (not included)
  • Compatible with all of our Quick Change Platens

Technical Specifications

Additional Features

  • Online access to reporting, including total impressions, active/idle time, and average cycle time.
  • Self-diagnostics help with troubleshooting and maintenance.
  • 16" x 20" upper platen.
  • Stores hundreds of application settings.
  • Adjustable stand creates an ergonomic workspace for multiple users.
  • Threadability™ increases production – load garments once and easily rotate from front to back.

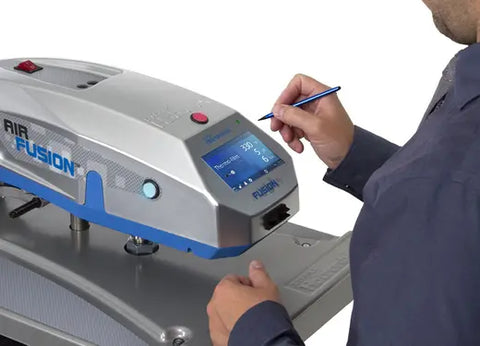

  • Exclusive Touch Screen Controller with new Multi-swipe gestures.
  • Data interface port for software upgrades.
  • Live digital time, temperature, and pressure readout.
  • Energy-saving 4 hr sleep mode.
  • Production cycle counter.
  • UL/ULC/CE/RoHS compliant.
  • Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 15 amps; 3500 w
  • Must have designated circuit breaker
  • 3/4 inch heat platen with fast recovering heater technology.
  • Die pressure cast 356 aluminum corrosion-free framework.
*Requires air compressor (not included) with minimum
1/2 horse power and 2.5 gallon hold tank. Uses 2.3 CFM.

Print these 6 Heat Press Care Tips and keep them close to your heat press to help keep it in shape.
  • Multiple time and pressure settings make application a breeze.
  • Program and store frequently used applications.
  • Innovative EZ-On platen design eliminates the need for pillows or pads.
  • 120 PSI for heavy pressure application.
  • User-safe two-hand operation.
  • Digital read-outs.
  • Optional smaller interchangeable platens.
  • Proudly made in the USA.
  • Premier warranty.
  • Actual Weight: 152 lbs
  • Shipping Weight: 245 lbs

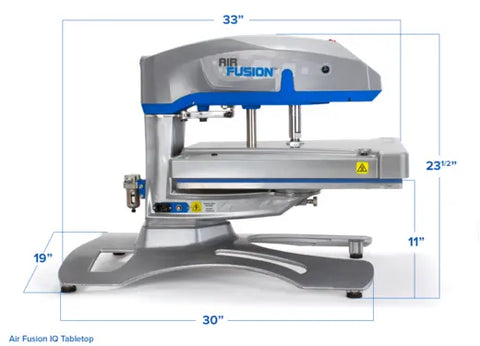

  • Dimensions: 40" x 32" x 57"
  • Shipping Dimensions: 40" x 48" x 58"

Hotronix Premier Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 yr on Circuit board
  • 1 yr parts/labor

Operators Manual

 Download the Hotronix Air Fusion IQ Operators Manual
Shipping

The cost of shipping your order will be calculated using our postcode search at the checkout. Enjoy free shipping with orders over $50. You will be notified once your item has been sent with a tracking number. Additional charges apply to international sales, please contact us for a quote.

Return

Our product comes with a 30-day money-back guarantee. If you are not satisfied with our product, send it back to us for a full refund following our Refund Policy. The return is invalid if the faults are caused by incorrect use or failure to respect the cleaning and care instructions.

Why Avance Vinyl?

“I didn't want to go overboard with toys for my little one since they really don't need much so this was a great purchase. My baby has been using the mat for a few weeks now and I can say that he hasn’t gotten bored of it yet! He loves playing with it laying down and will turn from his back to his tummy and stare at the mat or if he lands just right. I even drug it with me into the living room so I could make dinner. You can easily add different hanging items to make sure your kid doesn't get bored, the stuff that comes with The Complete Kit is great.”

Helen Truax

California, USA

4.9/5 based on 239 reviews

How to Use Heat Transfer Vinyl

It only takes four simple steps to use HTV.

  1. Cut your design in a reverse pattern on the vinyl. Remove any access from the pattern.
  2. Preheat the item that the design will be transferred onto for about 2-3 seconds.
  3. Place the design onto the item with medium to firm pressure. Hold it there for 12-15 seconds at 305 degrees Fahrenheit (150 C).
  4. Once the product and transfer are completely cool, peel off the backing to reveal your final design.

Safe To Use on

100% Cotton

Cotton & Polyester Blend

100% Polyester


Frequently Asked Questions

I made a mistake how do I remove a vinyl?

Heat transfer vinyl can be removed from the fabric using acetone or a sharp scraping edge such as an X-acto knife or scissors.

Can I use Fabric Softeners on this?

Yes, our heat transfer vinyl is safe for use with all conventional fabric softeners!

How long do they last?

Our heat transfer vinyl can go through dozens to hundreds of wash cycles before showing any signs of cracking or fading!
